Frames

Frames consist of Webnet pre-installed into stainless steel profiles, making installation quick and easy.

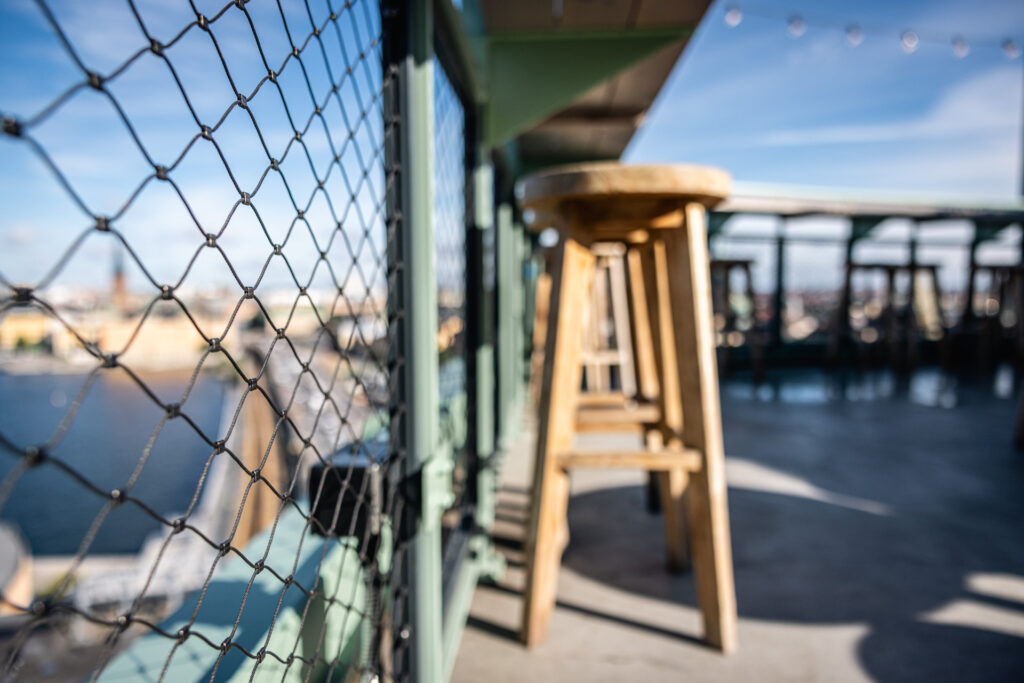

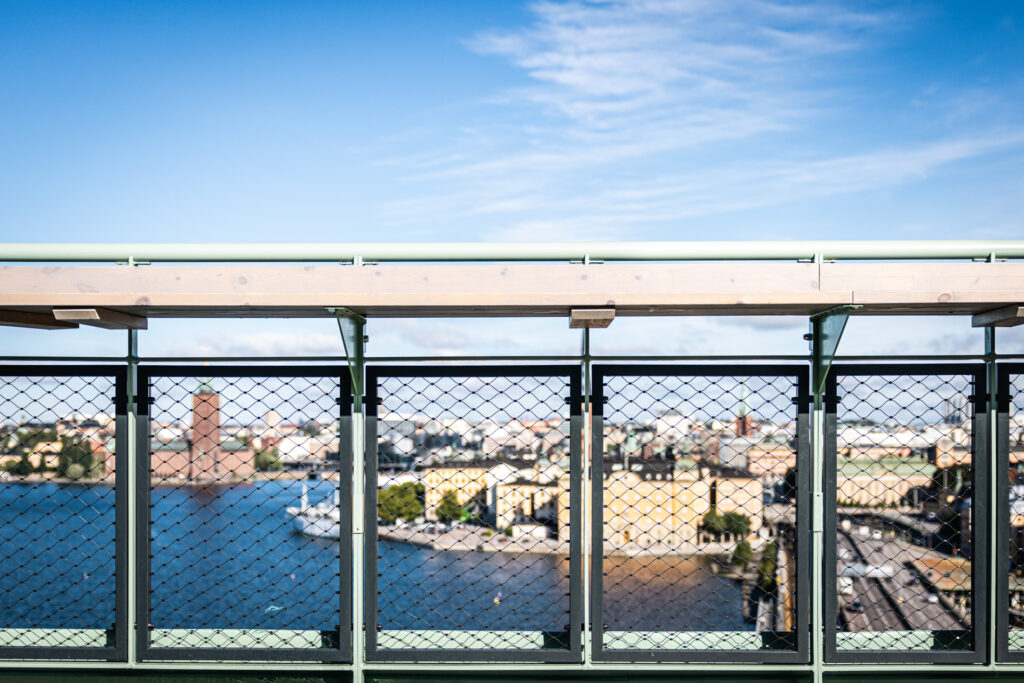

As safety fences or balcony railings Webnet Frames combine beauty with efficiency. The assembly of Webnet on site is a matter minutes : the Frames are supplied with the suitable holes, Frame holders and clips as needed and can simply be screwed on to the structure.

Webnet Frames can be ordered in standard shapes and profiles, or fabricated according to your needs. The elasticity of Webnet makes it exceptionally well suited for the most diverse geometries. With options to colour all Frame profiles and Webnet infills in most colours of the RAL Classic colour palette, the possibilities for design accents are endless!

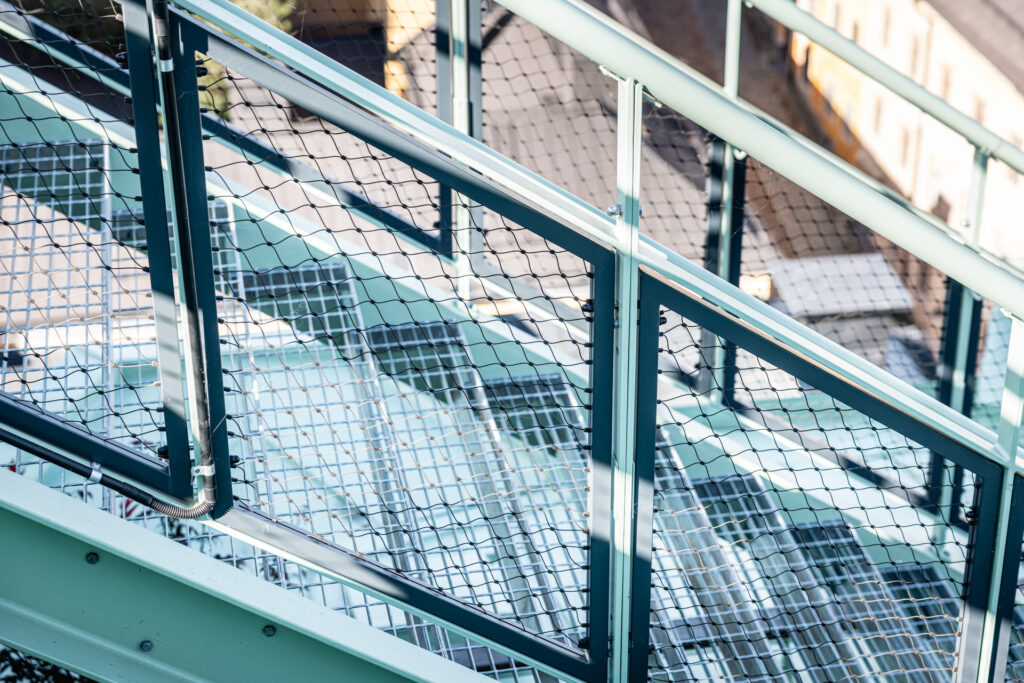

On stairways, Webnet Frames offer both stability and guidance as well as safety when employed as a delicate railing infill. They also serve well as room divider design elements. As a greening element, they provide a visual distinctiveness either on facades or when free-standing. As a complement to architectural environments, they function as a dividing element on airport or court buildings or offer protection above glass walls.

All Frames are crafted to suit your requirements and made of high-grade stainless steel. Like all Webnet products, Webnet Frames are authorised for the use as a horizontal and vertical fall prevention by the Deutsche Institut für Bautechnik (DIBt) under the approval number Z-14.7-557.

Products

Webnet Frames Classic

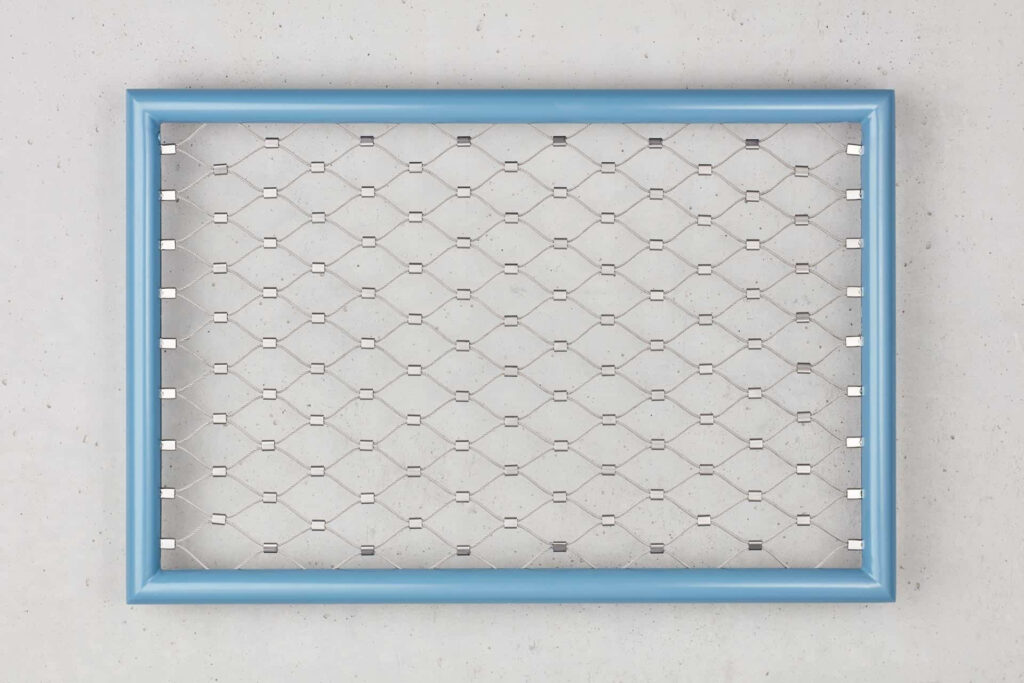

Webnet Frames Classic are made of stainless steel round tubes in various diameters. The lacing rope which secures the wire rope net in place is wound visibly around the frame. This frame type enables the use of virtually all shapes and net types, is cost-effective and stable.

Webnet Frames Inviss-R

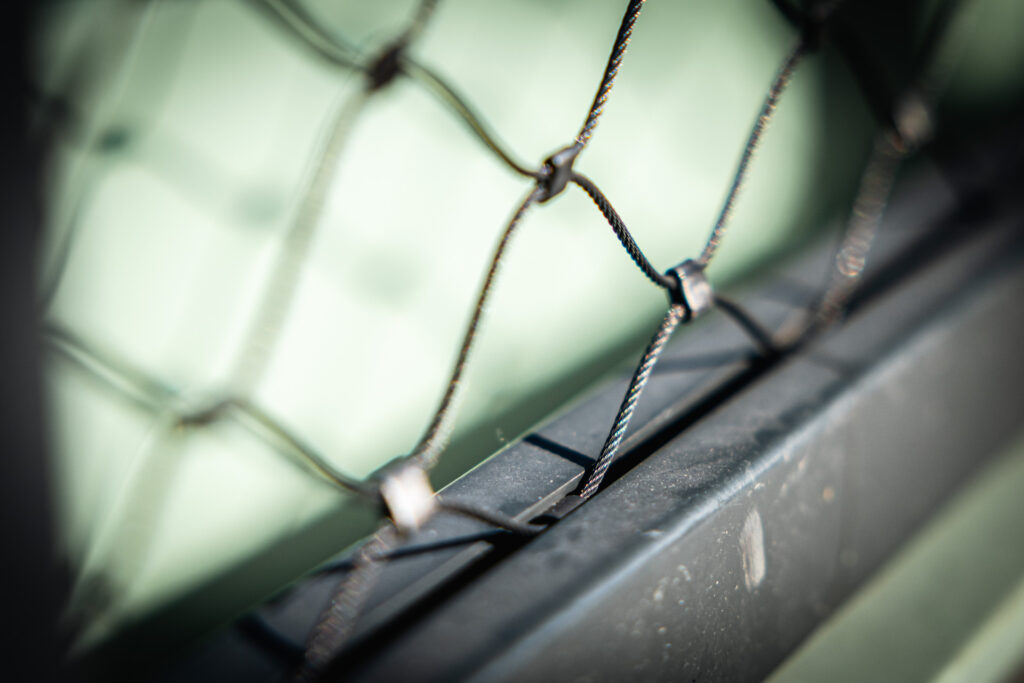

On Webnet Frames Inviss, the lacing rope lies within the slotted frame profile and is therefore not visible. This lends the frame a very elegant and aesthetic appearance. Inviss-R designates frames with slotted round tubes.

Webnet Frames Inviss-C

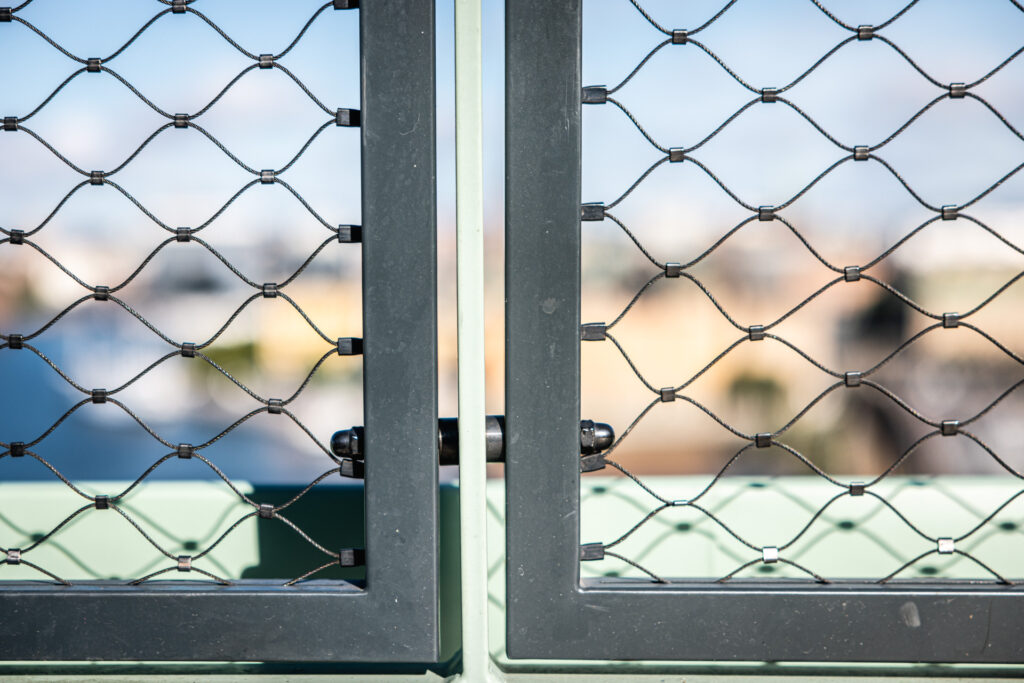

Analogous to the Webnet Frames Inviss-R, the Webnet Frames Inviss-C utilise a rectangular or square profile.

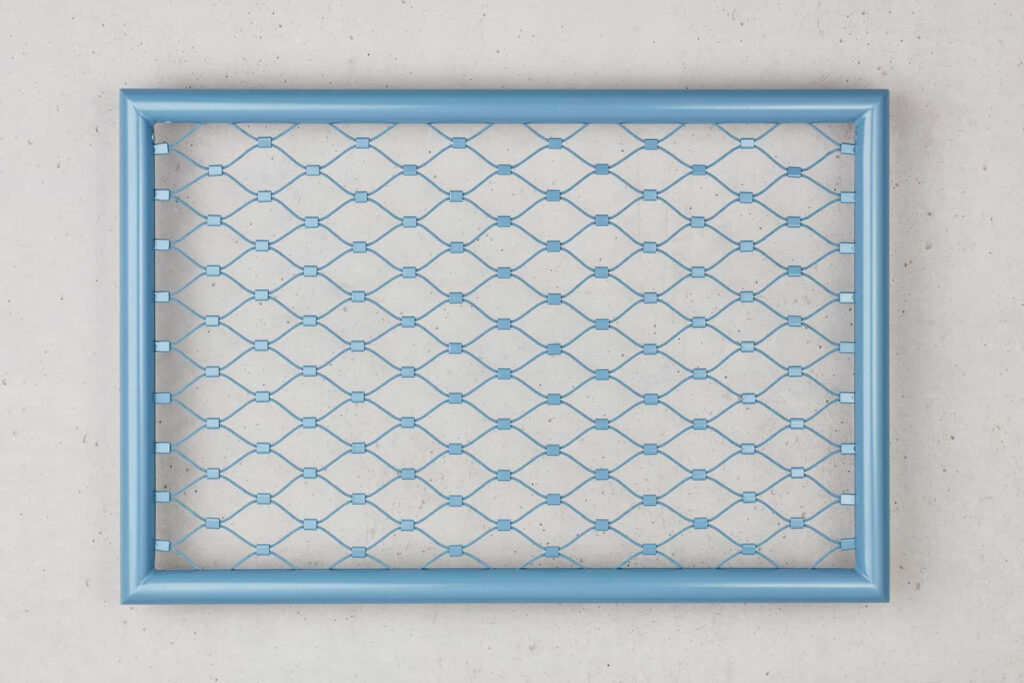

Coloured Frames

Optionally, we can deliver Webnet Frames with a paint coating based on the RAL-Classic color palette.

SundaHus Assessment

Sundahus material data Assessment logo

No one wants to construct buildings with hazardous substances, this is something that everyone working for X-Line agree with and when it comes to the inviroment and human safety we take it seriously. We submitted Jakob Rope Systems Webnet Frames to SundaHus for testing and the result was as good as we could hope for. The highest classification, A.

In SundaHus Material Data you can search among thousands of assessed product. The assessments are based on different properties and classified into five classes: A, B, C+, C- and D. Their experienced chemists document the contents of the products and assess them according to the SundaHus Assessment Criteria based on the supplier’s documentation.

The requirement to reach the highest score is a product that:

  • Give minimal health or environmental impacts associated with the PRIO properties defined in the Swedish Chemicals Inspectorate priority guide PRIO (e.g. carcinogenic, toxic to reproduction, endocrine disruptors, allergens etc.)
  • Are not classified as hazardous for health or the environment during the construction phase
  • Do not affect the indoor environment negatively through high emissions of volatile organic compounds
  • Give minimal contribution to smog formation
  • Do not emit excessive levels of formaldehyde ( according to the E1 standard)
  • Provide a minimal strain on natural resources and less to landfill mountains
  • Have a long service life (for selected product groups)
  • Are not likely to contribute to unsustainable forestry
  • Have poor transparency regarding the product contents

Inspiration

jakob-rope-systems-reference-railing-infill-webnet-switzerland-grindelwald-first-cliff-walk-09
csm_jakob-rope-systems-reference-green-solutions-unterer-bruehl-stgallen-07_49d30703d3
csm_jakob-rope-systems-reference-green-solutions-webnet-waterloo-facade-greening-09_de8d8d1ec3
csm_jakob-rope-systems-reference-green-solutions-webnet-waterloo-facade-greening-09_de8d8d1ec3 - copy
csm_jakob-rope-systems-reference-webnet-designers-saturday-langenthal-16_b007875a51 - copy - copy
csm_jakob-rope-systems-references-moh-basel-02_d294d2e67b
csm_jakob-rope-systems-reference-webnet-designers-saturday-langenthal-16_b007875a51
csm_jakob-rope-systems-reference-webnet-designers-saturday-langenthal-16_b007875a51 - copy
csm_jakob-rope-systems-reference-protection-safety-webnet-austria-stgallenkirch-hotel-base-montafon-02_f20f7a106d
csm_jakob-rope-systems-reference-protection-safety-webnet-austria-stgallenkirch-hotel-base-montafon-02_f20f7a106d - copy
jakob-rope-systems-reference-railing-infill-webnet-switzerland-grindelwald-first-cliff-walk-09
csm_jakob-rope-systems-reference-green-solutions-unterer-bruehl-stgallen-07_49d30703d3
csm_jakob-rope-systems-reference-green-solutions-webnet-waterloo-facade-greening-09_de8d8d1ec3
csm_jakob-rope-systems-reference-green-solutions-webnet-waterloo-facade-greening-09_de8d8d1ec3 - copy
csm_jakob-rope-systems-reference-webnet-designers-saturday-langenthal-16_b007875a51 - copy - copy
csm_jakob-rope-systems-references-moh-basel-02_d294d2e67b
csm_jakob-rope-systems-reference-webnet-designers-saturday-langenthal-16_b007875a51
csm_jakob-rope-systems-reference-webnet-designers-saturday-langenthal-16_b007875a51 - copy
csm_jakob-rope-systems-reference-protection-safety-webnet-austria-stgallenkirch-hotel-base-montafon-02_f20f7a106d
csm_jakob-rope-systems-reference-protection-safety-webnet-austria-stgallenkirch-hotel-base-montafon-02_f20f7a106d - copy
previous arrow
next arrow

Go to Downloads for more information and brochures
